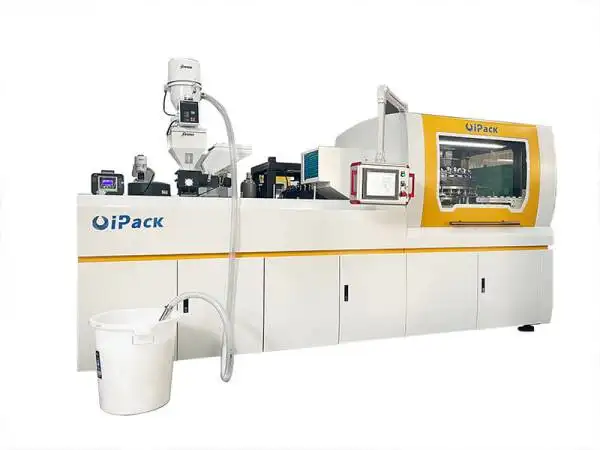

Plastic Cap Compression Molding Machine: 3x Output, Low Cost

Plastic Cap Compression Molding Machine: Easy Operation, Labor-Saving, Aesthetic Bottle Caps with High Productivity

Plastic cap compression molding machine boosts output by 3x vs same-energy injection machines, with fast speed, high efficiency and low cap-making costs.

Get A Quote

Advantages of Plastic Cap Compression Molding Machine

Easy of Operation and Minimum Maintenance

Because the machine is simple in design, it is easy to operate. The stable outcome does not necessitate frequent maintenance. The machine therefore is equally suitable for long periods of continuous production.

Energy-Saving and Economical

Saving of water, light, raw materials and labour. The cost of making caps is brought down most considerably, but the same output is

Super Quality in Caps in Appearance and Aesthetics

Surface of the caps is smooth, without any defects and attractive in appearance, thus coping with high quality in packaging.

Large Output & High Production Speed

Output 3x as high as injection moulding machine output at the same consumption of electric energy so that caps may be produced in mass production.

Plastic Cap Compression Molding Machine: Easy Operation, Labor-Saving, Aesthetic Bottle Caps with High Productivity

VIEW DETAILS

Cap Compression Machine

Technical Parameter

Model	CM-18A	CM-24A	CM-36A	CM-36H
Capacity(cph)	15,000-18,000	23,000-25,000	36,000-40,000	70,000-72,000
Cap Diameter(mm)	15-60	15-60	15-60	15-60
Cap Height(mm)	10-35	10-35	10-35	10-35
Cap Material	PE/PP	PE/PP	PE/PP	PE/PP
Number of Cavities	18	24	36	36
Air Consumption	0.3m³/hr,0.8Mpa	0.4m³/hr,0.8Mpa	0.8m³/hr,0.8Mpa	0.8m³/hr,0.8Mpa
Dimension(m)	2.71.42	3.81.62.1	5.53.62.1	5.53.62.1
Wight(kg)	4,000	5,000	8,000	9,000

FAQ

How does the Cap Compression Machine work?

It melts and extrudes plastic granules in an extruder, cuts off billets, distributes them to the cavities, then forms the caps by spring extrusion or hydraulic means.

What benefits are derived from caps made on this machine?

No injection points, no runner waste, high quality and beautiful appearance.

Is the Cap Compression Machine easy to plate and cheap to produce?

Yes, it can be readily operated, and saves water, current, raw material and labor, greatly reducing the cost of operating a cap.

How does the output compare with an injection molding machine for caps?

The output is three times that of a cap injection molding machine, the same power being consumed.
